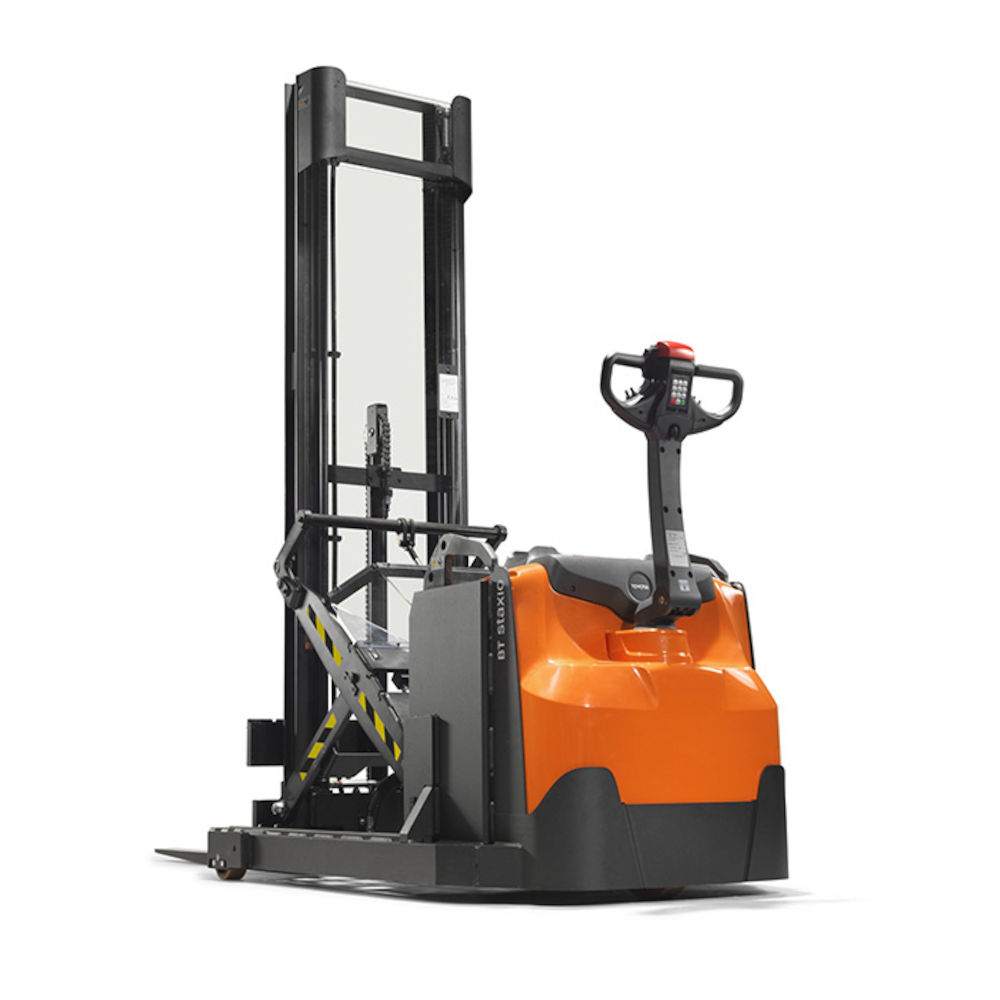

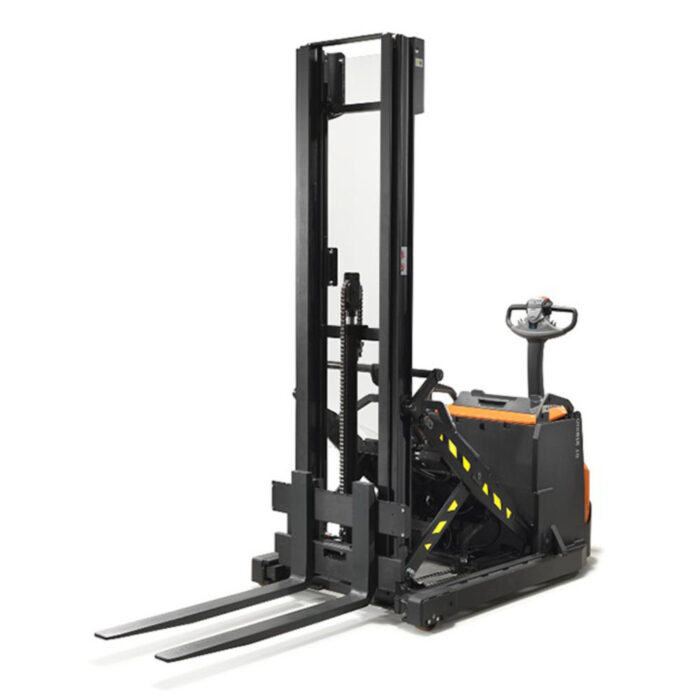

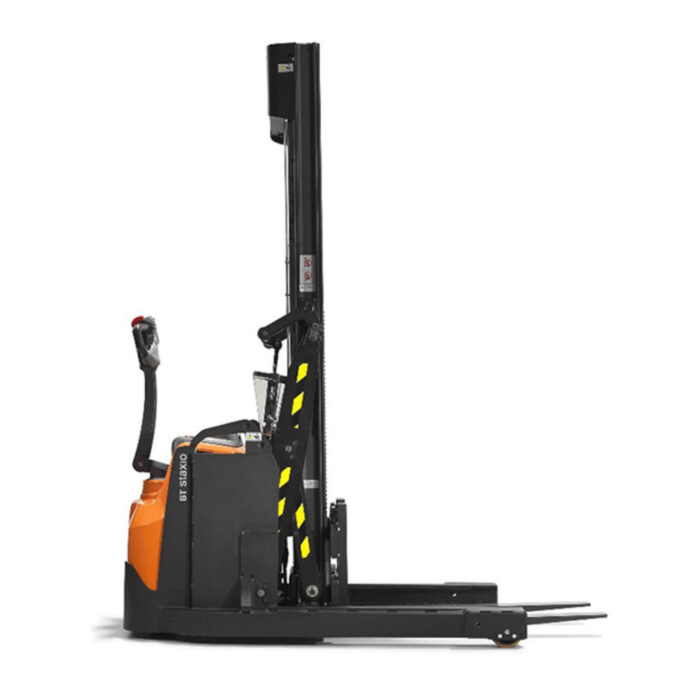

BT Staxio 1.2t Stacker with Retractable mast
BT Staxio 1.2t Stacker with Retractable mast
BT Staxio 1.2t Stacker with Retractable mast
BT Staxio 1.2t Stacker with Retractable mast
BT Staxio 1.2t Stacker with Retractable mast
BT Staxio 1.2t Stacker with Retractable mast

BT Staxio 1.2t Stacker with Retractable mast

Model: SWE120XR
  • 1,200 kgCapacity
  • 4,800 mmLift height
  • 6 km/hMax. speed
  • 24 VVoltage
  • 500 AhBattery

Configuration

Choose your options. Your selection is sent with your quote request.

Product features

  • Combines the compactness of a stacker with the flexibility of a reach truck
  • Ideal for working in narrow areas, saving storage space and increasing efficiency
  • Ergonomic tiller arm
  • Click-2-Creep manoeuvrability for ease of use
  • Smart truck: easy to connect, monitor & improve

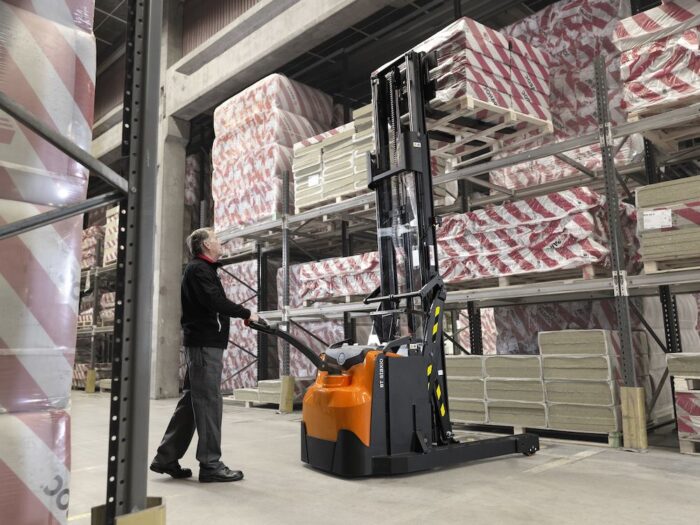

Combining the compactness of a stacker with the flexibility of a reach truck results in a versatile solution that can handle any pallet type. The SWE120XR pedestrian stacker with 1200 kg load capacity is ideal for use in narrow aisles, saving storage space and costs.
BT Staxio 1.2t Stacker with Retractable mast
Flexible machine

Flexible machine

Thanks to the compact chassis and retractable mast, this truck can offload conveyors, handle large loads or closed pallets, and stack up to 5,4 m.

Tilting forks

Tilting forks

On these models the forks can be tilted up or down for safe pallet handling.

Handle with fingertip control

Handle with fingertip control

The operator has all controls for drive, lifting/lowering, reach and tilt within easy reach the ergonomic handle.

Integrated fork positioner

Integrated fork positioner

When stacking goods, increase productivity by using an integrated fork positioner with sideshift that lets the forks slide left, right or in/out.

E-bar

E-bar

With the optional E-bar you can easily mount ancillary equipment such as a scanner or PC.

Smart truck

Smart truck

Smart trucks come with telematics hardware as standard. These trucks can easily be connected with I_Site from Toyota, offering insights into battery management, geolocation, shocks, and much more.

Technical specification

  • 180°+ Power/Electronic steering
  • Optimised truck performance
  • Reach mast with Pantograph fork mechanism
  • Mast tilt
  • Adjustable fork width
  • Sensi-lift
  • Click-2-Creep
  • Electronic fingertip controls for all functions
  • Access control
  • Driver-adapted programmable performance
  • Easy access for maintenance
  • Smart truck with telematics hardware

Key data

Load capacity1200 kg
Max lift height4800 mm
Max. battery capacity500 Ah
Voltage24 V
Top speed6.0 km/h
Smart truckDa

Warranty

  • New purchases: 1 year warranty

Downloads
