Part no.: RAM-B-202U-RAM
With this round base, you can create the foundation for your individual RAM Mount holder. The round bases in the 1-inch and 1.5-inch sizes have four holes in the industry-standard AMPS pattern (rectangular arrangement,…
Request a quote

You will receive prices and delivery times in the quote. Our team will reply as soon as possible.

Product description

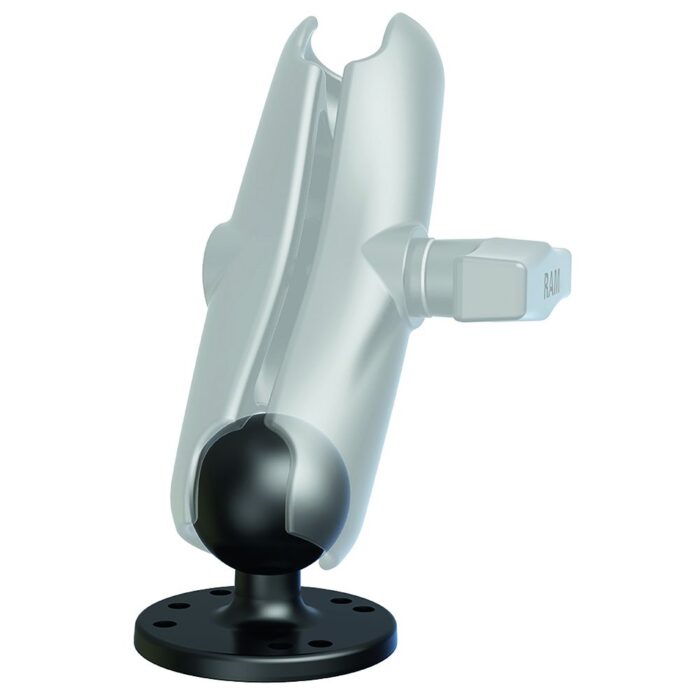

With this round base, you can create the foundation for your individual RAM Mount holder. The round bases in the 1-inch and 1.5-inch sizes have four holes in the industry-standard AMPS pattern (rectangular arrangement, 30 x 38 mm), as well as three holes at 120-degree intervals. The 2.25-inch round base is available with either four industry-standard AMPS holes or three holes at 120-degree intervals. The 3.38-inch round base is available with three holes at 120-degree intervals. The bases can be used to attach device carriers without a ball, such as the RAM-mount scanner holster.

Variants and specification

ItemSpecificationUnit
Round base 1" ballPart no.: RAM-B-202U-RAM
  • 1 inch (size B): For light equipment up to 0,9 kg, Ø 63,5 mm
B (1" / 25,4 mm)
per piece
Round base 1.5" ballPart no.: RAM-202U-RAM
  • 1.5 inch (size C): For equipment up to 1,8 kg, Ø 63,5 mm
C (1,5" / 38,1 mm)
per piece
Round base 2.25" ball - 3 hole 120 degree anglePart no.: RAM-D-202U-RAM
  • 2.25 inch (size D): For heavy equipment up to 2,7 kg, Ø 93,5 mm
D (2,25" / 57,15 mm)
per piece
Round base 2.25" ball - 4 hole AMPS patternPart no.: RAM-D-254U-RAM
  • 2.25 inch (size D): For heavy equipment up to 2,7 kg, Ø 62 mm
Colour
Black
D (2,25" / 57,15 mm)
per piece
Round base 3.38" ballPart no.: RAME202URAM
  • 3.38 inch (size E): For heavy equipment up to 6.5 kg, Ø 93.5 mm
Weight
744 g
Colour
Black
E (3,38" / 85,85 mm)
per piece

Downloads

From the same category

Securisoft komplet kontakata

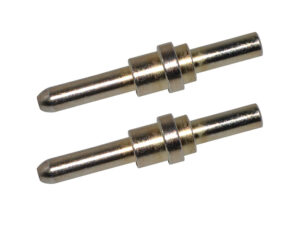

Securisoft contact kit
