Part no.: 4000009108MBC
This fork-arm mounted camera is a video camera used for monitoring the otherwise invisible operating areas of forklifts, especially in high-rack warehouses. The camera is mounted to the right fork-arm so that the line…
Request a quote

You will receive prices and delivery times in the quote. Our team will reply as soon as possible.

Product description

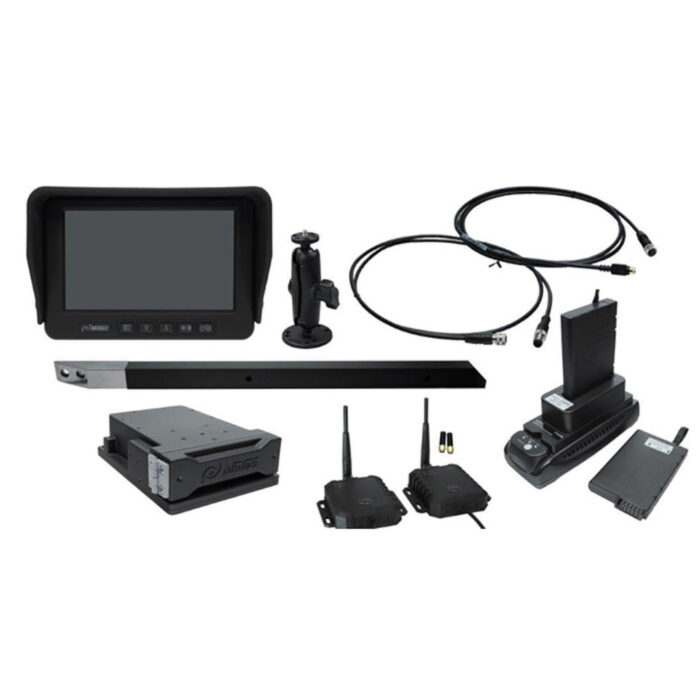

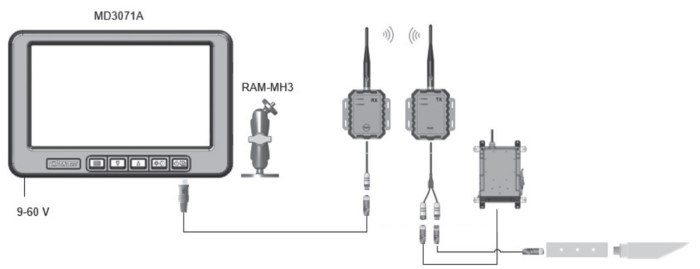

This fork-arm mounted camera is a video camera used for monitoring the otherwise invisible operating areas of forklifts, especially in high-rack warehouses. The camera is mounted to the right fork-arm so that the line of sight is along the fork. This is a complete kit for fork camera system that includes a camera, a monitor, wireless image transmission and all parts to mount and connect.

Variants and specification

ItemSpecificationUnit
Complete Fork camera system kit
Complete Fork camera system kitPart no.: 4000009108MBC
Weight
6 g
per kit

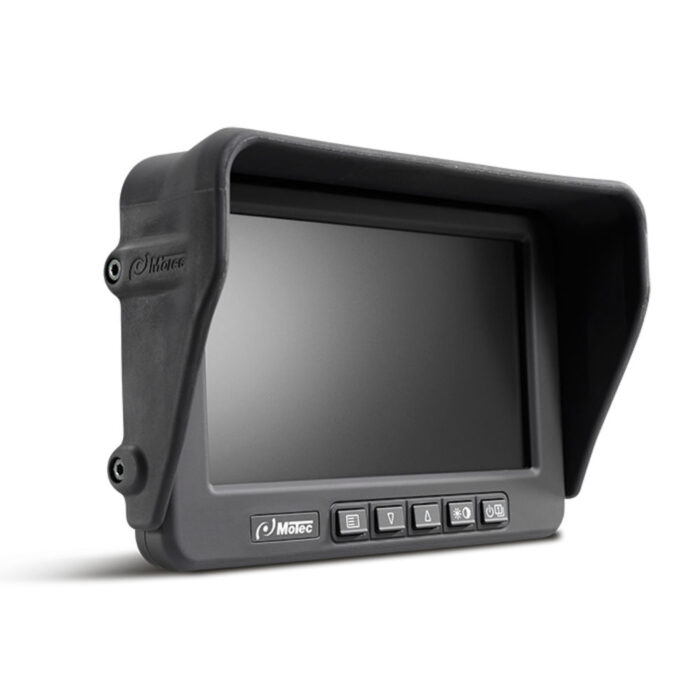

7" monitor
7" monitorPart no.: 4013071008MBC
  • This monitor is an excellent tool to give the operator a variety of different views around the lift truck. Place one or several cameras on the forklift to get the view that you need. The on-screen menu allows the individual configuration of up to 2 directly connected cameras and an external video controller with up to 4 additional cameras. Incl. RAM Mount monitor bracket.
Colour
Black
Weight
6 g
per kit

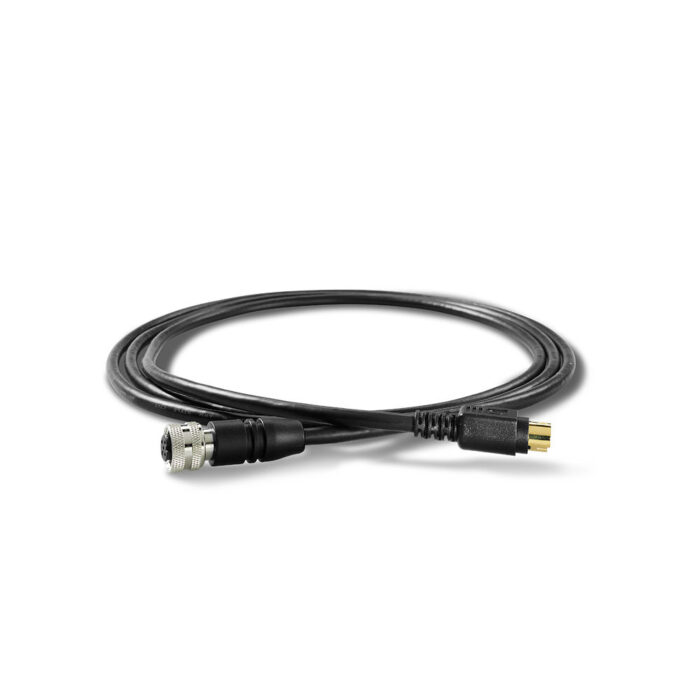

Cable from display to receiver
Cable from display to receiverPart no.: 4030496002MBC
  • 2 m cable. To be used for the fork camera system. Connection between monitor and wireless image transmitter (RX).
Weight
6 g
per piece

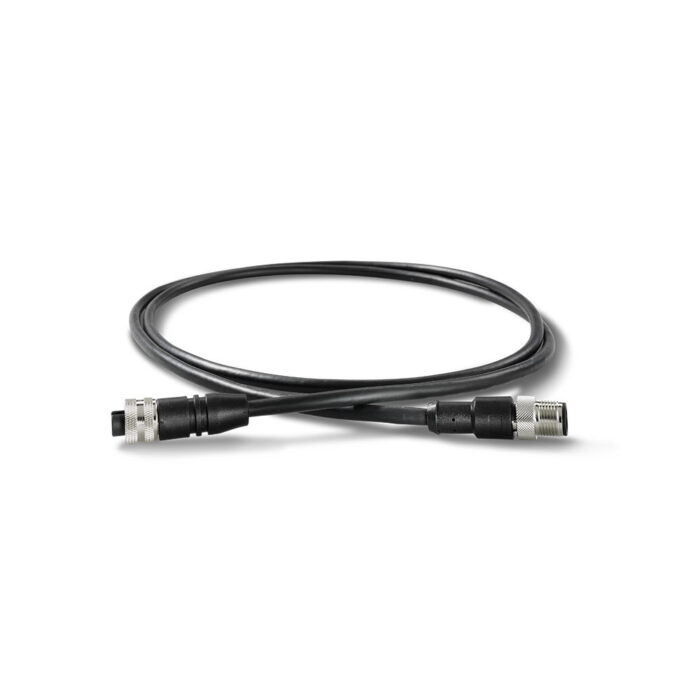

Cable from transmitter to camera
Cable from transmitter to cameraPart no.: 4020021008MBC
  • 1,5 m cable. To be used for the fork camera system. Connection between camera and wireless image transmitter (TX).
Weight
6 g
per piece

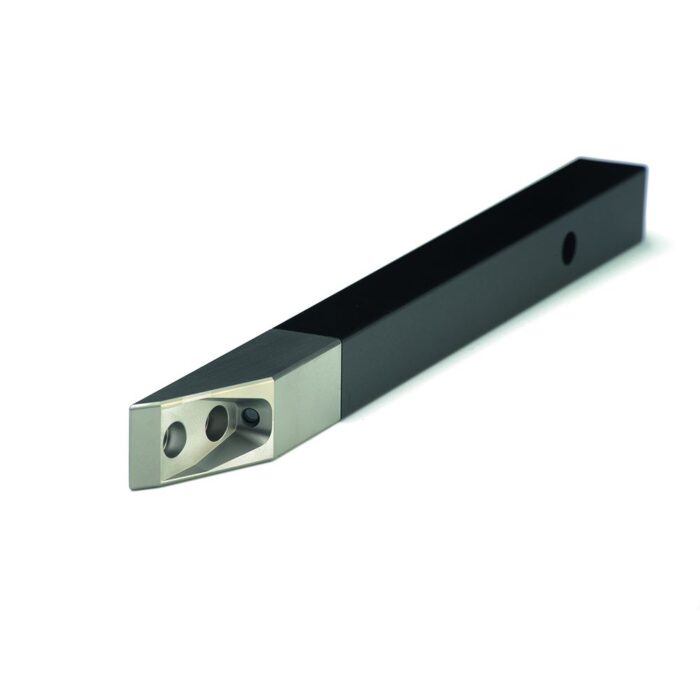

Fork-mounted camera
Fork-mounted cameraPart no.: 4040060039MBC
  • Image angle: 50° horizontal
  • Voltage supply: 12 V DC (+/- 10%)
  • Operating temperature: -40 °C to +80 °C
  • Protection: IP69K
Weight
6 g
per piece

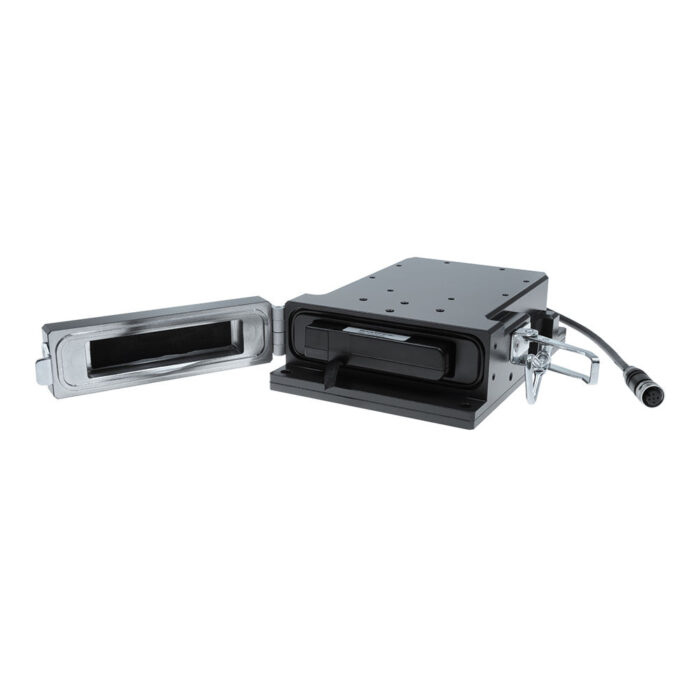

Battery box (heavy-duty)
Battery box (heavy-duty)Part no.: 4060190003MBC
  • A flexible, robust and utility vehicle-compatible battery box. Automatic switch on and off (extands battery life), robust aluminium housing anodized and painted for special weather resistance
Weight
6 g
per piece
Video receiver
Video receiverPart no.: 4050042009MBC
  • Power Supply (Receiver): 9 V - 32 V DC (from monitor)
  • Power consuption: max 2 W
  • Housing: Metal
  • Housing protection class: IP67
  • Operating frequency: 2400 MHz - 2483,5 MH
  • Operating temperature: -20°C to +70°C RH 90%
  • Conformity: CE/FCC/RoHS/ECE
Weight
6 g
per piece
Video transmitter
Video transmitterPart no.: 4050043007MBC
  • Power Supply (Transmitter): 9 V - 32 V DC (12V DC from battery on carriage)
  • Power Supply (Camera): 12 V DC (from battery on carriage)
  • Power consuption: max 4,5 W
  • Housing: Metal
  • Housing protection class: IP67
  • Operating frequency: 2400 MHz - 2483,5 MHz
  • Operating temperature: -20°C to +70°C RH 90%
  • Conformity: CE/FCC/RoHS/ECE
Weight
6 g
per piece
Battery charger
Battery chargerPart no.: 4060229001MBC
  • Charging time 3-5h
  • Charging temperature 0° to + 40°
Weight
6 g
per piece
Battery Li-Ion-Akku
Battery Li-Ion-AkkuPart no.: 4060250003MBC
  • -Voltage: nominal/operating/charging/cutoff: 10,8 V DC / 12,6 V to 9 V / 12,6 V DC / 7,5 V DC
  • -Maximum discharge current: 3,500 mA
  • -Capacity: 7,800 mAh/84Wh
  • -Operating/charging temperature: -20°C to +60°C / -30°C to +60°C
  • -Charging time: 3-5 h
  • -Dimension (WXHXD); 149,5x89,3x20 mm
  • -Weight: approx 0,5 kg
Weight
50 g
Colour
Black
per piece
